Trimax

Campey supply the full Trimax range of tractor powered grass mowing equipment. They produce cost-effective, reliable and productive solutions. By buying a Trimax mower, you’re buying a machine you can depend on.

Listed below is a small selection of the Trimax range, please get in touch to find out more about the full range available from Campey, simply call +44 (0)1260 224568 or email us today.

Warlord S3™

Heavy duty flail mulcher mower.

The all new Trimax Warlord S3™ with it’s hydraulic sideshift operation makes for a powerful working companion in various commercial applications. We’ve designed the Warlord S3™ to be safe and reliable for roadside and contracting work and have maintained our robust build which already made the S2 the flail of choice for hire fleets. With the ability to shred branches up to 75mm in diameter and fitted with unique features such as 3 year warranty, pruning guide and an adjustable rear flap, the Warlord is a serious commercial flail mower.

With the new sideshift we added the ability of manoeuvring the mower around trees and obstacles. For heavy duty mowing requirements, you can’t go past the Warlord S3™ for orchards, municipal and contracting operations.

Talk to us today about the capabilities of Warlord in your environment and ask for a demonstration.

Specification

S3 175
S3 205
S3 235
Cutting Width
1740 mm (69″)
2040 mm (80″)
2340 mm (92″)
Overall Width
2036 mm (80″)
2336 mm (92″)
2636 mm (104″)
Overall Length
1050 mm (41″)
1050 mm (41″)
1050 mm (41″)
Cut Height Range
10-110 mm
10-110 mm
10-100 mm
(3/8″ – 4″)
(3/8″ – 4″)
(1/4″ – 4″)
Approx Weight
660 kg
750 kg
800 kg
Minimum Tractor Size
45 hp
50 hp
55 hp
Rollers
1
1
1
Flails Per Mower
24
28
32

Product Features

3 Year Warranty
We stand behind our products in the most demanding conditions and we are proud to offer Warlord S3™ with a market leading 3 year warranty.

Hydraulic Side Shift
Our engineers have designed Warlord S3™ to quickly shift from centre position to either right of left offset up to 500mm for maximum productivity. This is perfect for transport and for manouvering around obstacles.

Discharge Control
The coarseness of the mulch is controlled by the height of the rear flap. The finest mulch is produced with the flap in its lowest position. Lifting the flap allows more material to be processed. Controlling the discharge also assists with safety in public spaces. Lifting the flap fully open makes for easier maintenance and flail servicing.

Pruning Guide
The guide helps direct prunings and other foliage in and under the Warlord S3™ that would otherwise be too high to fit through the front aperture. It also helps keep debris away from the hydraulic system for protection in challenging environments.

Heavy Duty Skids
The replaceable skids are ideal for operators with with one side of the Warlord commonly running on hard terrain.

Internal Liner
A 6mm replaceable internal liner to increase the life of the body, minimises damage and reduces noise.

Product Options

Heavy Duty Roller
Upgrade from the 9mm thick roller to an 11mm heavy duty roller for more demanding applications.

Left or Right Hand Offset
Warlord S3™ can be specified with a left or right hand offset.

Enquire Now

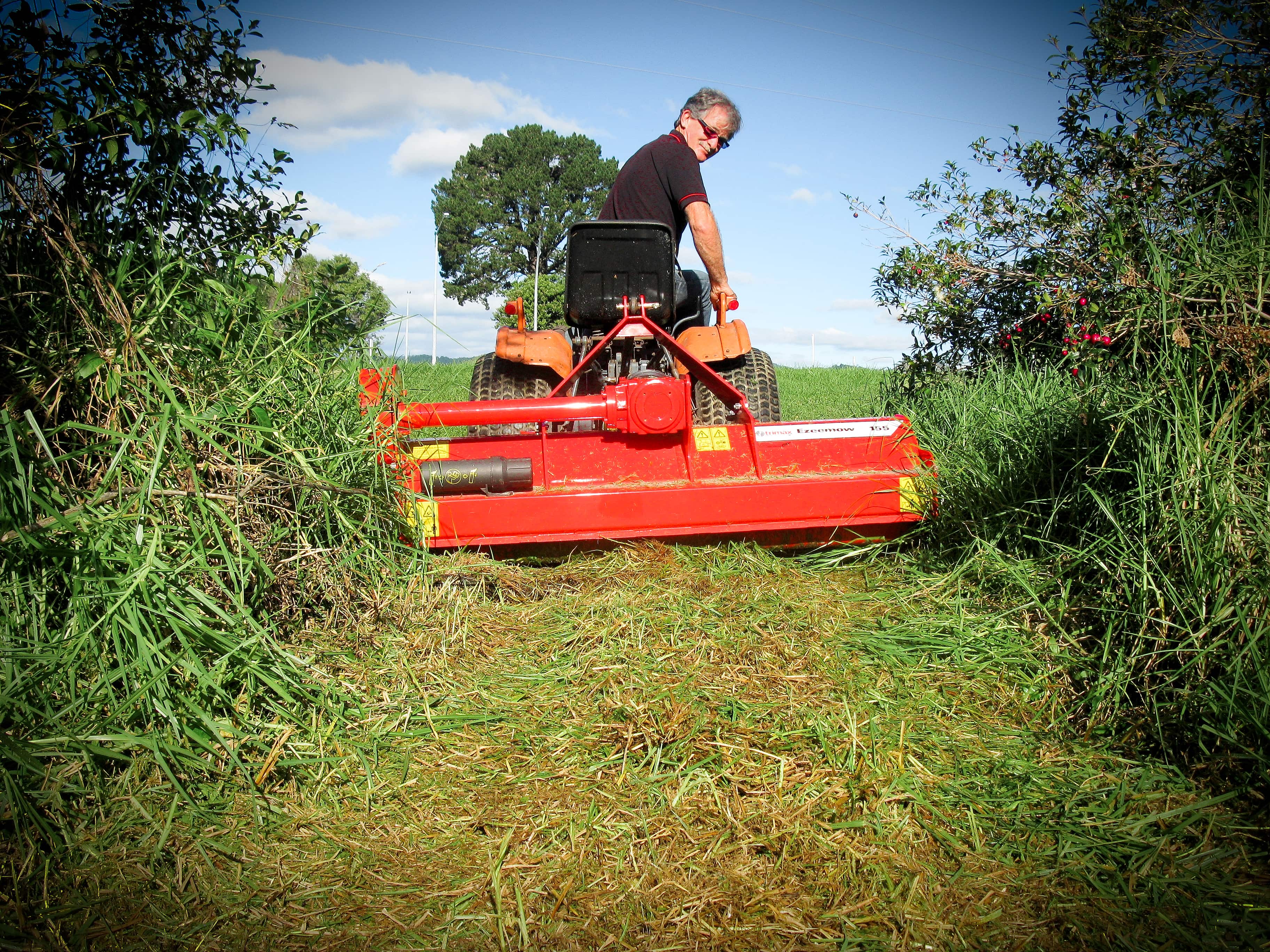

Ezeemow FX™

Trimax flail technology for compact tractors.

The new Ezeemow FX™ is the ideal partner for your compact tractor where versatility and robustness is needed. Ezeemow FX™ now includes our unique and patented Converter™ system giving you greater mowing versatility from short grass to heavy conditions.

Ezeemow FX™ can handle fine turf, small prunings and one meter high grass and scrub with minimal maintenance and maximum reliability. This versatility makes the Ezeemow FX™ ideal for contractors, councils, roadsides, estates, vineyards and orchard applications.

Ezeemow FX™ is compatible with tractors from 20 to 45hp and its compact dimensions allow manoeuvrability in tight corners.

Talk to us today about Ezeemow FX for your environment.

Specification

E2 135
E2 155
E2 185
Cutting Width
1342 mm (53″)
1520 mm (60″)
1830 mm (72″)
Overall Width
1560 mm (61″)
1720 mm (68″)
2045 mm (81″)
Overall Length
583 mm (23″)
583 mm (23″)
583 mm (23″)
Cut Height Range
10-110 mm
10-110 mm
6-96 mm
(3/8″ – 4/2″)
(3/8″ – 4/2″)
(1/4″ – 4″)
Approx Weight
180 kg
200 kg
225 kg
Min PTO Output
18 hp
20 hp
22 hp
Warranty (Years)
3
3
3

Product Features

3 Year Warranty
We aim to build mowers that last and we back this up by a 3 year warranty. Our robust design coupled with our experienced service and support network ensure minimum downtime and more productivity.

Rugged Construction
Well thought out design, high strength materials and robust monocoqular construction ensure the Ezeemow can withstand the harshest conditions and the most demanding operators.

Safety First
Safety is of paramount importance when mowing in public areas such as parks, schools and roadsides. This is why Trimax has designed the Ezeemow to expel debris in a downward direction behind the mower.

GammaFlails™
The aerodynamic shape of Trimax’s unique GammaFlails™ means the tractor’s power is used for cutting grass or shredding vegetation, not for pumping air. This equates to lower horsepower requirements, allowing this mower to operate in difficult conditions when powered by a compact tractor.

Converter™
When lowered Trimax’s unique and patented Converter™ feature exhibits superb short grass cutting ability by creating airflow that lifts the grass before it’s cut. For work in heavy environments the Converter™ can be quickly lifted allowing more grass to be processed within the mower to increase productivity.

Product Options

Left or Right-Hand Offset
A fixed left or right-hand offset option for road side applications is available.

Enquire Now

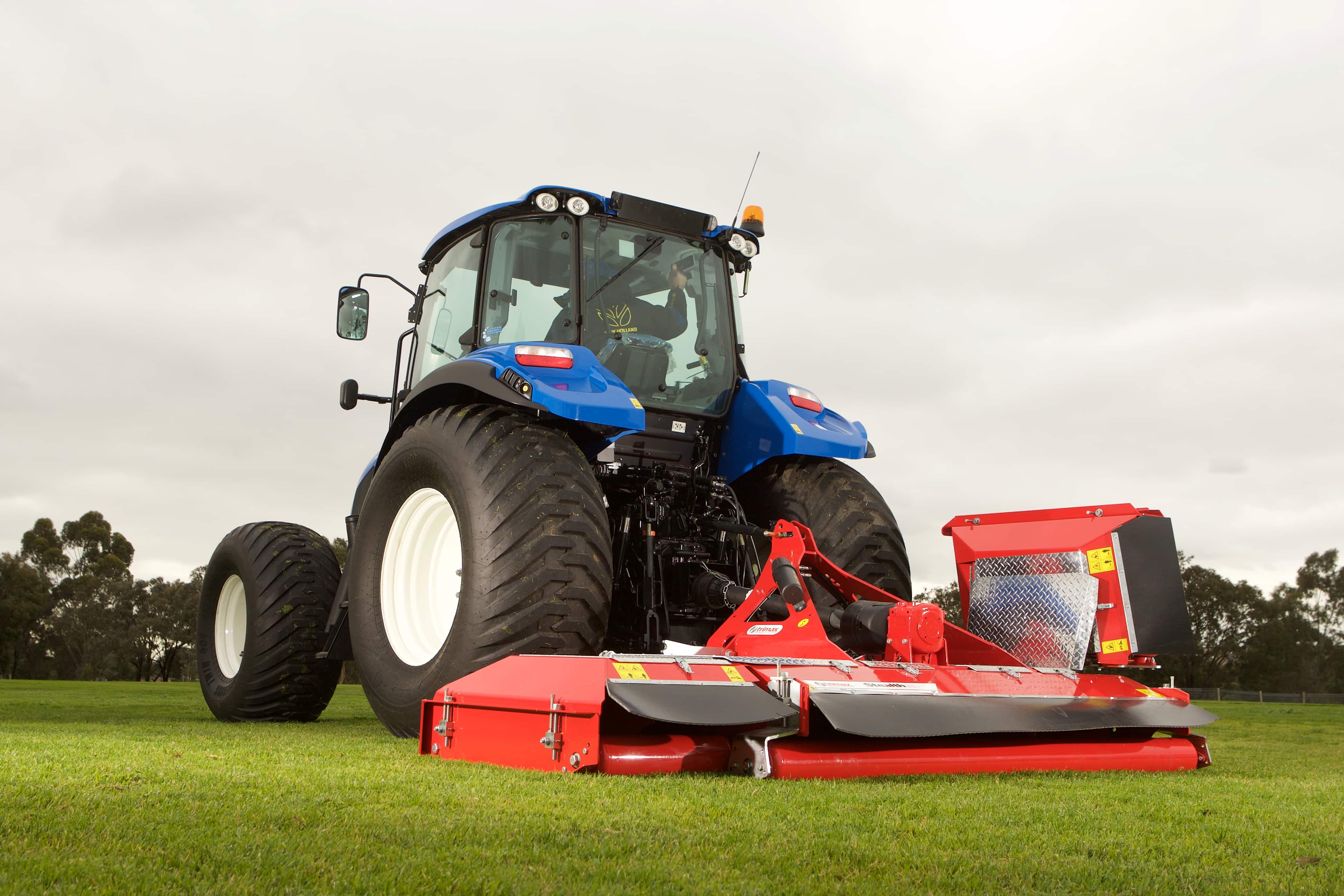

Stealth S3

Folding 3.4m width for 3 point linkage

The Stealth S3 has been designed to have a higher quality of cut, operate in a wider range of conditions, be safer, more robust, easier to operate and take less time to maintain than any previous Stealth.

Backed by 30 years experience in the market, the concept of Stealth S3 was born from the demand of our customers for a mower that was more versatile in terms of long grass performance and is more user friendly for both the operator and the workshop.

Backed by our three year warranty and UK based parts and technical support, we believe the Stealth S3 to be the best linkage wing mower for passive and active turf in the market.
Ask us how Stealth S3 can transform your environment.

Specification

Cutting Width
3400 mm (134″)
Overall Width
3550 mm (140″)
Width (Transport Mode)
2416 mm (95.2″)
Height (Transport Mode)
1205 mm (47.5″)
Cut Height Range
10-90 mm (0.4″ – 3.5″)
No. of Blade Spindles
5
Approx Weight
940 kg (2070 lb)
Min PTO Output
55 hp
Warranty (Years)
3

Product Features

3 Year Warranty
We aim to build mowers that last and we back this up by a 3 year warranty which includes the spindles and gearboxes. Our robust design coupled with our experienced service and support network ensures minimum downtime and more productivity.

Most Versatile Stealth Ever
The improved cutting chamber design means a much improved quality of cut and spread in long and short grass. The new baffle design directs airflow from the blades out and over the rear roller, making the Stealth S3 the most versatile Stealth ever.

Reduced Maintenance
We’ve eliminated the need for daily greasing through many new features. Our revolutionary new roller bearing design is proven to require fewer bearing replacements and our updated spindle technology requires less maintenance and offers greater simplicity. You can spend more time mowing and less time maintaining!

Stand-on Covers
Provides safe and easy access to the rear of the tractor when coupling the mower

Easy to Clean
The improved belt chamber design results in easy cleaning, with the front openings allowing the grass to be easily washed or blown away.

Revolutionary Maintenance-free Roller Bearing Design
Featuring heavy duty Tri-bolt housings, large triple sealed bearings, replaceable stubs and simple, yet robust patent pending* roller retention. Our innovative roller bearings require no maintenance greasing and have a longer lifespan than any previous Stealth.

Easy, Accurate, Height Adjustment
Clearly displayed cut height indicators allow for simple and easy alteration or resetting of cut heights. You can adjust heights without having to raise and lower the wings.

LazerBladez™
Stealth S3 3 is fitted with Trimax LazerBladez™, a blade system with a carefully engineered centre of gravity and distinctive tilt-forward blade design unique to Trimax. For optimum performance and grass speed.

Product Options

Individual Wing Lift/Electric Unlock
Individual wing lift feature to lift either the left or right decks independently when PTO is engaged.

Roller Scrapers
Trimax Helical scrapers ensure constant pressure on the roller and assist with cleaning.

Safety Stands
Lockable stands that hold the mower up to assist with maintenance.

Safety and Storage Kit
Includes toolbox, road lights, safety triangle and mounting bracket for commercial use.

Enquire Now



FlailDek FX

Trimax flail technology for out front operation

 The Trimax FlailDek FX offers a high performance alternative to the standard factory-fitted rotary mowing attachments found on John Deere, Kubota, Iseki, New Holland, Shibaura and Hustler out-front tractors. The ability to deliver an exceptionally clean cut and disperse clippings safely. FlailDek FX is suitable for sports grounds, roadsides, schools, parks and other fine turf applications.

3 Year Warranty
We aim to build mowers that last and we back this up by a 3 year warranty. Our robust design coupled with our experienced service and support network ensure minimum downtime and more productivity.

Unique Converter™
Trimax unique and Patented Converter feature when lowered allows superb short grass cutting ability by creating airflow that lifts the grass before it’s cut. For work in heavy environments the Converter can be quickly lifted allowing more grass to be processed within the mower to increase productivity.

Rear Roller
The full width rear roller prevents unsightly scalping and permits the edge of the mower to be run along kerbs and banks without fear of blade strike. The roller also adds to overall safety and produces a brilliant striping effect for those wishing to pattern their turf.

Power Saving Blades
One of the many secrets of the FlailDek FX’s success is the exclusive Trimax Gamma™ flail. Formed from high tensile alloy steel and hardened for long life, the straight cutting edge produces a perfectly even cut. The aerodynamic profile reduces horsepower requirements, yet generates sufficient draught to prevent clogging, and lifts the grass for a clean cut. The low power requirements are a huge advantage, especially in heavy conditions.

Y-flails – Options
Y-flails are available for use in dry and dusty conditions

Enquire Now



X-WAM

Ultimate wide area mowing when quality counts

The X-WAM has superior contour following abilities based on the unique combination of individually floating decks and articulated axis. With the potential to cut 33 acres per hour and the ability to perform zero-turns without having to lift any of the mower decks, the X-WAM will increase your productivity using one tractor, one driver, and one mower to cut 2/3 more area with a cylinder like cut finish.

3 year warranty
We aim to build mowers that last and we back this up by a 3 year warranty which also includes the spindles and gearboxes. Our robust design coupled with our experienced service and support network ensure minimum downtime and more productivity.

LazerBladez™
X-WAM is fitted with Trimax LazerBladez™, a blade system with a carefully engineered centre of gravity and distinctive tilt-forward blade design unique to Trimax. Utilising the LazerBladez™ full length cutting edge, X-WAM produces a clean finish even when mowing at high ground speeds. LazerBladez™ are made with high grade alloy steel providing a significant increase in blade and bolt life for added safety and lower operating costs.

Low Maintenance
Ease of maintenance and reliability are engineered into the X-WAM design. All moving surfaces have long life synthetic bushes or greasable bearings. Remote grease points are centralised and raising the mower decks provides unobstructed access to the mower underbody for safe and hassle-free maintenance.

Enquire Now

Pegasus S3

Trimax presentation and quality for wide area, road legal mowing

Since its original release in 2001, the Pegasus has become established as the benchmark in wide area mowing applications such as parks, reserves, airports, racetracks, sports fields, turf farms, golf roughs and fairway areas. Despite its large cut width, the mower is deceptively capable on undulating terrain thanks to impressive deck articulation and full width rollers which prevent scalping. It is also capable of performing a zero turn and can manoeuvre around trees and other obstacles with ease. The PegasusS3 combines flawless cutting performance with incredible versatility – it will give a cut finish equal to a cylinder mower in short grass, whilst in longer grass there is simply no comparison. Another major advantage offered by the PegasusS3 is its exceptionally low maintenance requirements compared to cylinder and other rotary mowers, making it a popular choice for commercial applications where minimal downtime is a priority.

Transport
Transportation between locations could not be more convenient. All mower decks can be raised and lowered from the tractor seat and the mower towed quickly between locations for minimum downtime.

Zero Turn
Continuous cutting while turning for areas such as headlands, tight spaces and around trees.

Built Tough
The PegasusS3 is designed specifically for full time commercial use in a wide range of demanding conditions. Only the highest quality, heavy duty materials and components are used to ensure total dependability at all times.

Clean Cutting
Trimax’s famous LazerBladez™ fling-tip blades are fitted as standard on the PegasusS3, which help achieve a superior cut finish though an optimised blade thickness and air flow, a carefully engineered centre of gravity and unique ‘tilt forward’ blade system. LazerBladez™ are much more cost efficient than reel or solid beams as only the fling-tip portion of the blade is replaced.

Full width rollers
Full width rollers on all decks follow the contours of the ground and provide excellent anti-scalp protection. Rollers also allow mowing along the edge of banks or paths and produce a superb striping effect for those wishing to pattern their turf. Safety is enhanced as rollers contain debris in the cutting chamber.

ILS – Option
The ILS (individual lift system) allows for three different cutting widths without leaving the tractor seat.

Quattro Blade System- Option
This system adds 2 more blades to each spindle (2 flat, 2 upturned) for a finer cut on warm season grasses.

Remote unlock
The remote unlock option replaces the standard transport lock release rope with an electric actuator. This is operated by a push-button on the tractor.

Enquire Now

Snake

3.2m width for compact tractors

 Snake is the accumulation of over 30 years of Trimax innovation, engineering and customer insight. Designed for sports turf and golf courses, Snake has the unique ability to transform a variety of conditions into an even carpet of green. We’ve seamlessly combined our world class cut quality and have added articulation capabilities never seen before on a Trimax mower. We believe that what we’ve created is the best sports turf rotary mower in the world. Built for agility, as tough as nails and an incredibly versatile mower, the Trimax Snake won’t fail to impress. Snake owners benefit from a proven 3 year warranty and genuine Trimax support. As with all our products, when you buy a Trimax, you are part of the Trimax family. This means not only are you well supported by our incredible dealer network and experienced staff, but you have a direct line to the family owned company for usage insights, feedback and any questions you may have.

3 Year Warranty
We aim to build mowers that last and we back this up by a 3 year warranty which also includes the spindles and gearboxes. Our robust design coupled with our experienced service and support network ensure minimum downtime and more productivity.

Kerb Jump
The Kerb Jump, also known as ‘Cross Cut’, enables all three mower decks to be raised just off the ground without disengaging the PTO. This improves productivity by allowing the mower to traverse gravel driveways or paths and quickly turn at headlands. ZERO TURN Continuous cutting while turning for areas such as headlands, tight spaces and around trees.

LazerBladez™
Snake is fitted with Trimax LazerBladez™, a blade system with a carefully engineered centre of gravity and distinctive tilt-forward blade design unique to Trimax. Utilising the LazerBladez™ full length cutting edge, Snake produces a clean finish even when mowing at high ground speeds. LazerBladez™ are made with high grade alloy steel providing a significant increase in blade and bolt life for added safety and lower operating costs.

Full Width Rollers
Full width rollers minimises scalping in extreme undulating conditions and allows mowing over kerbsides, bunkers and potholes without blade strike. UP TO 50HR PTO GREASE With the use of our new FLEX CONE, we can prevent dust and external agents getting trapped in the bearings, also minimising the risk of PTO’s coming in contact with the rotating parts of the drives. This greatly reduces the amount of greasing required, extending intervals out to as much as 50 hours.

Option – Road kit
The road kit option adds mudguards to the wheels and includes LED tail light clusters.

Option – Remote unlock
The remote unlock option replaces the standard transport lock release rope with an electric actuator. This is operated by a push-button on the tractor.

Enquire Now

Striker

Trimax Presentation For Compact Tractors

Trimax Striker is a multi-spindled rotary mower with low maintenance requirements that incorporates a unique baffle design for improved grass distribution and less clumping. Designed for tractors in the 25-35hp range, Striker has Trimax LazerBladez™ fitted as standard and has full-width front-and-rear rollers which produce an attractive striped pattern and guard against scalping. Designed to withstand tough conditions Striker has variable height adjustment for year round mowing and an enclosed cutting chamber for added safety. Able to mow quickly at a high standard Striker is ideal for educational and sports facilities and green spaces where presentation is key.

Low Maintenance
With only 4 carefully positioned grease points and robust spindles with sealed ball bearings the Trimax Striker has incredibly low maintenance requirements.

Safety
Striker exceeds international safety standards and is backed up by our meticulous testing and backed by our support network. Striker is a mower that can be used with confidence even when mowing in confined areas.

LazerBladez™
LazerBladez™ are fitted to enhance the clean cutting ability of the Striker. The tilt-forward design of LazerBladez™, which is unique to Trimax minimises hang back in tough conditions and the full-length cutting ensures that a clean cut is achieved when mowing at high ground speeds. LazerBladez™ are made from a special alloy steel which provides greater durability needed in commercial mowing operations. The combination of more cuts per metre, LazerBladez™ and a unique underbody design ensures an even spread of clippings.

Advanced Design
Striker incorporates decades of experience with multi-spindled rotary roller mowers. Lighter than other Trimax mowers, it retains the attention to detail that minimises downtime and makes servicing easy. The cutting system, body integrity and sealed ball bearing spindles have been proven with extensive and rigorous testing.

Enquire Now



ProCut S3

Versatile Trimax cutting performance for commercial environments

The Trimax ProCut Series 3 is a highly versatile roller mower. This robust machine has been engineered to withstand everyday use in the toughest commercial environments, yet will deliver a cylinder like cut – every time. The original ProCut has been a successful part of the Trimax range for over 20 years, mowing parks and reserves, school grounds and sports fields throughout the world. The ProCutS3 offers new features, improved performance and is easier to maintain, yet retains many of the aspects that set the original apart from the competition.

3 Year Warranty
We aim to build mowers that last and we back this up by a 3 year warranty which also includes the spindles and gearboxes. Our robust design coupled with our experienced service and support network ensure minimum downtime and more productivity.

Multiple Spindles
Over the past 25 years Trimax has mastered the art of high performance multi-spindle mowers. Blade spindles are engineered for long life and have a 3 year warranty. ProCutS3 spindles have smaller diameter blades that give more cuts per metre, clean cutting and high ground speeds. This adds up to better productivity and an exceptional finish.

LazerBladez™
LazerBladez™ are fitted to enhance the clean cutting ability of the ProCutS3. The tilt-forward design of LazerBladez™, which is unique to Trimax minimises hang back in tough conditions and the full-length cutting edge ensures that a clean cut is achieved when mowing at high ground speeds. LazerBladez™ are made from a special alloy steel which provides greater durability needed in commercial mowing operations.

Full Width Rollers
Large front and rear rollers on the ProCutS3 follow contours and support the mower across its entire width, providing excellent anti-scalp protection. The mower decks are able to be hung over kerbs and run across concrete areas with no fear of blade strikes

Option – Quattro Blade System
This system adds 2 more blades to each spindle (2 flat, 2 upturned) for a finer cut on warm season grasses. (Currently unavailable on the 210 model)

Option – Single Roller
These are often used for orchard mowing where the grass is cut very infrequently and low cut heights are not necessary.

Enquire Now



If you require more information
simply call 01260 224568 or email us
